Bladder Pacemaker:
Electrocardiographic Interference!
Description

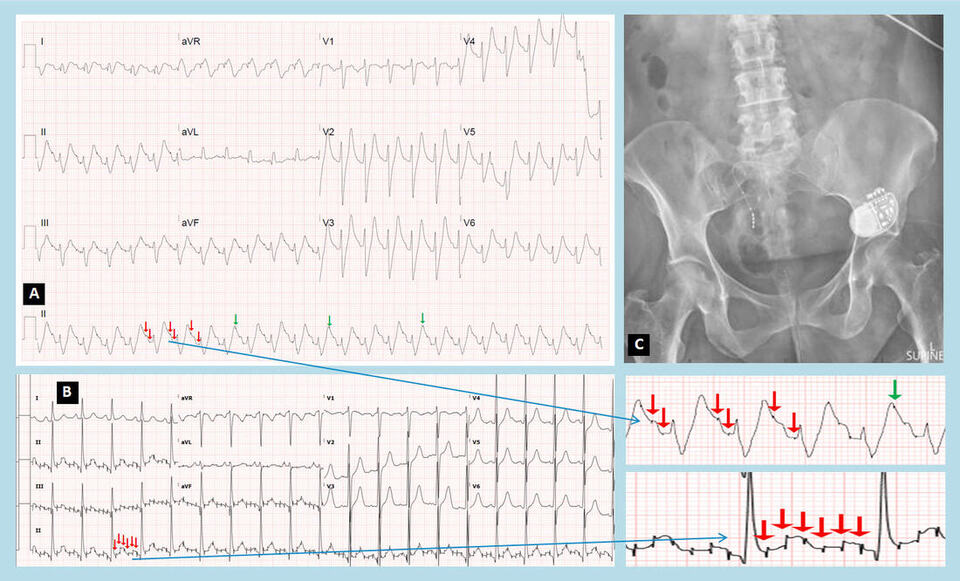

The above electrocardiogram (EKG) in Figure A reveals pacemaker spikes preceding a wide QRS complex rhythm initially suggestive of dual chamber (AV sequential) pacing. Closer scrutiny (insert) reveals additional pacemaker spikes on the T waves which are inappropriate and do not support a pacing role for the detected spikes. Review of a prior EKG in Figure B revealed very fast pacing spikes with a cycle length of approximately 77 ms, and a rate of about 780/minute, thought to be AC interference (insert). The Chest X ray did not reveal evidence of any cardiac pacemaker. A Kidney, Ureter and Bladder (KUB) X ray, however, revealed a bladder pacemaker historically placed for atonic bladder as the cause for this interference artifact, likely set at 13 Hz, as seen in Figure C. The EKG changes in Figure A were in retrospect related to significant hyperkalemia with tachycardia, which coincided with the bladder pacemaker spikes causing the elusive appearance of dual chamber pacing with wide QRS rhythm and peaked T waves preceded by pacemaker spikes.
Discussion
EKG recording errors have been reported in approximately 6.5% of EKGs performed in a hospital setting [1]. Interference on an EKG from adjacent electrical devices has been reported previously not only in the setting of a bladder stimulation device [2], but also from a variety of extracardiac stimulators [3].
Many types of EKG artifacts have been reported [4] which include a several types of lead reversals or misplacements and tremor artifacts related to patient motion such as in Parkinson’s disease. Of greater than 1000 EKGs performed in a hospital setting, 5.9% were reported to have artifact, about 17% of which was AC noise (interference) artifact [5]. It is important to be vigilant of such artifacts [6] to avoid misinterpretation of these EKGs as cardiac arrhythmia or cardiac pacing (as in our case) and find ways to reduce such errors which can impact patient care [7].
